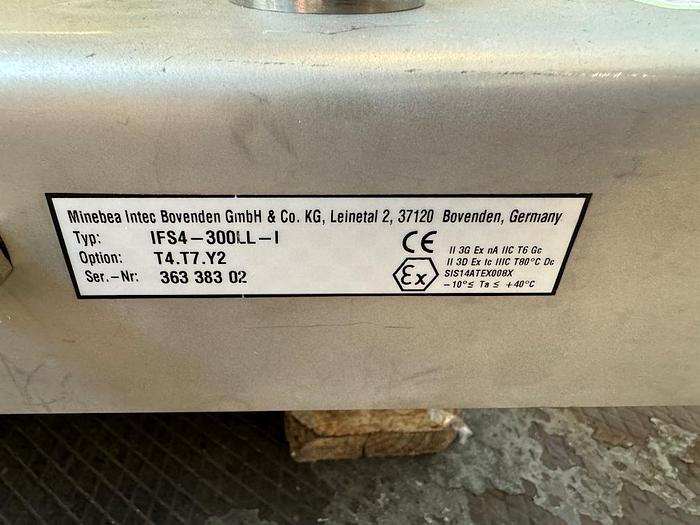

R 16503 E - Floor Scale MINEBEA INTEC IFS4-300LL-I ATEX - Max. 300 kg

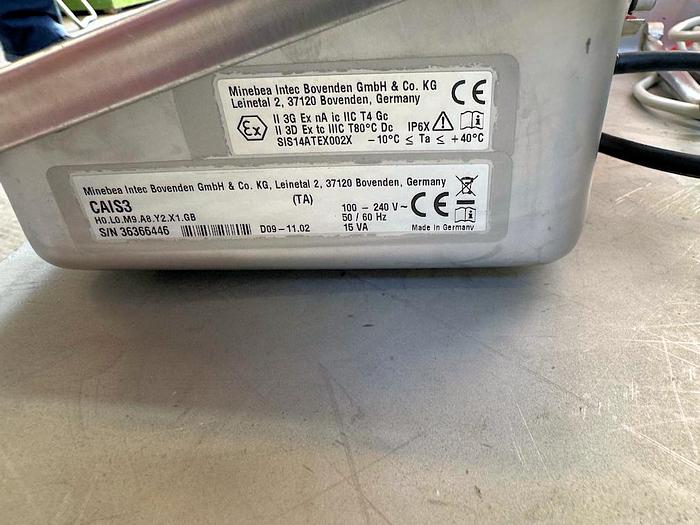

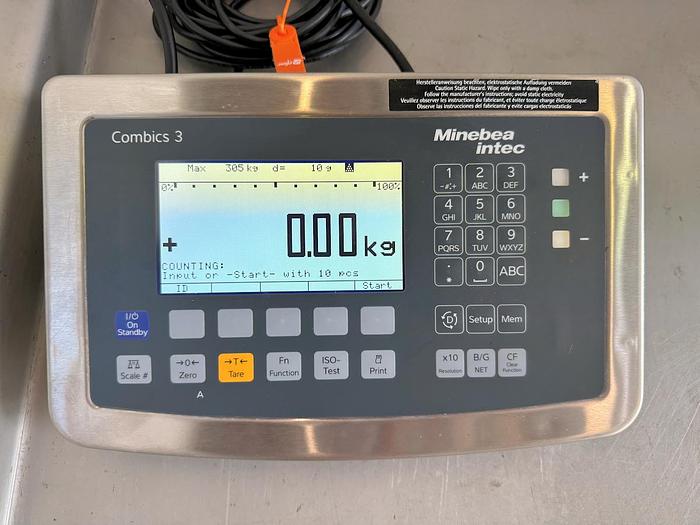

This modern, stainless-steel floor scale is designed to be used with all standard sizes of European pallets in hazardous areas. The weighing platform is of ATEX Cat. Ex II 3G/D approval and is complete with a connected ramp. The platform is connected to a Type COMBICS 3 weighing terminal. The terminal is designed to be wall or table mounted close to the platform and has many weighing functions.

This scale is complete with options: -

T4: backstop drive through protection

T7: retractable wheels for easy positioning of weigh platform

Y2: manouvering platform Specifications: - Max. Capacity: 305 kg Resolution (d): 0.01 kg Platform size: 1,250 x 1,000 mm

Platform useful area: 1,000 x 1,000 mm

Overall dimensions: 1,250 x 1,350 mm (incl. ramp) Hygenic design: Yes
